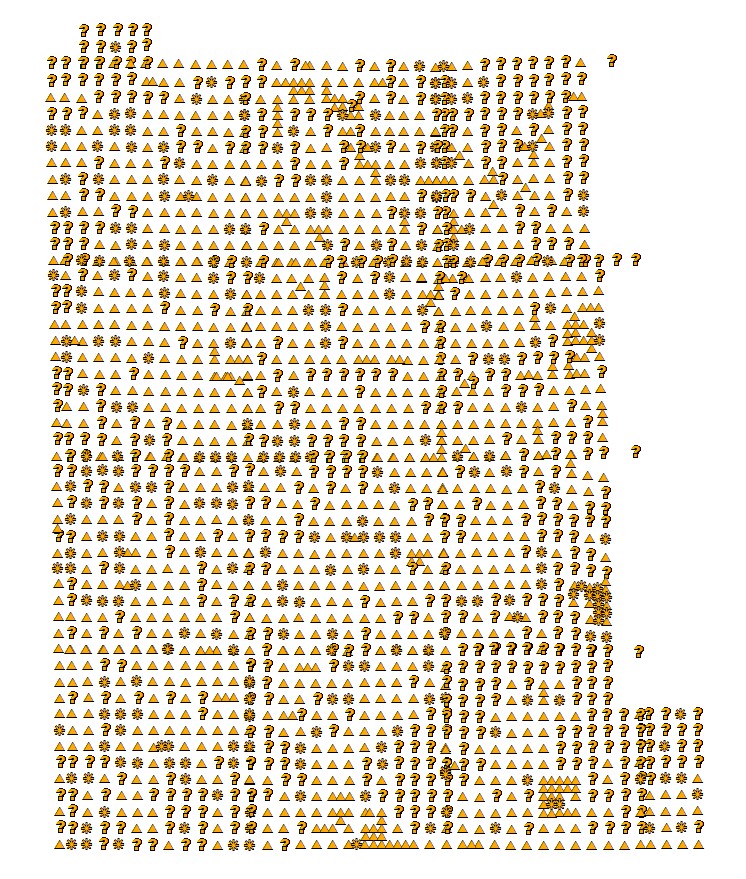

Name: PLSS Monument Records

Display Field: CORNER_ID

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This layer was created to document the status of the PLSS Section Corner Monuments in Monroe County, Indiana. The majority of the points included in this layer were copied from a previous layer of unknown origin that was also maintained by the Office of the Monroe County Surveyor. We believe that the points were created at the endpoints of the section line layer, which was created from digitized USGS quad maps. The points have been adjusted where survey grade coordinate data is available, and will continue to be refined as more coordinates are collected.

Service Item Id: 43c880e20bd64d328b7448307108be16

Copyright Text: Office of the Monroe County Surveyor

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 100000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 3065173.9195322506
YMin: 1363897.1799972504
XMax: 3170349.8128545843
YMax: 1749135.958402671
Spatial Reference: 2245  (2966)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: CORNER_STATUS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Perpetuated
  Label: Perpetuated
  Description: N/A
  Symbol:

• Value: Referenced
  Label: Referenced
  Description: N/A
  Symbol:

• Value: Unknown
  Label: Unknown
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementAboveRight
Label Expression: [CORNER_ID]
Use Coded Values: true
Symbol:
Color: [255, 170, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 11
Font Family: Trebuchet MS
Font Style: italic
Font Weight: normal
Font Decoration: none

Min. Scale: 24000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• MCSO_Utility ( type: esriFieldTypeString, alias: MCSO Utility, length: 255 )
• Corrected_Lat ( type: esriFieldTypeDouble, alias: Corrected Lat )
• Corrected_Long ( type: esriFieldTypeDouble, alias: Corrected Long )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• CORNER_ID ( type: esriFieldTypeString, alias: Corner ID, length: 50 )
• Twp_ID ( type: esriFieldTypeString, alias: Twp_ID, length: 50 )
• DirectLink ( type: esriFieldTypeString, alias: Monument Record, length: 255 )
• CIVIL_TOWN ( type: esriFieldTypeString, alias: Civil Township, length: 12 )
• MCS_NAME ( type: esriFieldTypeString, alias: MCS Name, length: 50 , Coded Values: [Trohn Enright-Randolph: Trohn Enright-Randolph] , [Kevin P. Enright: Kevin P. Enright] , [Steven Vic Farkas: Steven Vic Farkas] , ...3 more... )
• CORNER_STATUS ( type: esriFieldTypeString, alias: Corner Status, length: 20 , Coded Values: [Perpetuated: Perpetuated] , [Referenced: Referenced] , [Unknown: Unknown] )
• TIESHEET ( type: esriFieldTypeString, alias: Internal Link, length: 254 )
• RECORD_STATUS ( type: esriFieldTypeString, alias: Record Status, length: 50 , Coded Values: [N/A: N/A] , [Calculated: Calculated] , [Cited: Cited] , ...8 more... )
• CornerName ( type: esriFieldTypeString, alias: Corner Name, length: 255 , Coded Values: [N/16: N/16] , [1/4: 1/4] , [S/16: S/16] , ...15 more... )
• Sections ( type: esriFieldTypeString, alias: Sections, length: 255 , Coded Values: [S102: n/a] , [S103: Section 01] , [S104: Section 01 & 02] , ...122 more... )
• TwnRng ( type: esriFieldTypeString, alias: TwnRng, length: 255 , Coded Values: [TR2: T10N_R02W_BeanBlossom] , [TR3: T10N_R01E_BentonNorth] , [TR4: T09N_R01E_BentonSouth] , ...33 more... )
• DATE_APPRV ( type: esriFieldTypeDate, alias: Date Approved, length: 8 )
• MON_SIZE ( type: esriFieldTypeString, alias: Monument Size, length: 10 , Coded Values: [1/4: 1/4"] , [3/8: 3/8"] , [1/2: 1/2"] , ...24 more... )
• MON_TYPE ( type: esriFieldTypeString, alias: Monument Type, length: 50 , Coded Values: [ST: Stone] , [CONC: Concrete] , [REB: Rebar] , ...28 more... )
• MON_DESC ( type: esriFieldTypeString, alias: Monument Description, length: 50 , Coded Values: [W01: w/ +] , [W02: w/ cap] , [W03: w/ Archer cap] , ...26 more... )
• MON_RTG ( type: esriFieldTypeString, alias: Monument Relative to Grade, length: 10 , Coded Values: [F: Flush] , [AG: Above Grade] , [BG: Below Grade] , ...2 more... )
• MON_COND ( type: esriFieldTypeString, alias: Monument Condition, length: 20 , Coded Values: [G: Good] , [B: Bent] , [L: Leaning] , ...6 more... )
• NOTE_MAINT ( type: esriFieldTypeString, alias: Maintenance Notes, length: 255 )
• NOTE_ACCESS ( type: esriFieldTypeString, alias: Access Notes, length: 255 )
• NOTE_GENRL ( type: esriFieldTypeString, alias: General Notes, length: 255 )
• COORD_SRC ( type: esriFieldTypeString, alias: Coordinate Source, length: 50 , Coded Values: [MCSO: MCSO] , [USFS: USFS] , [INDOT: INDOT] , ...3 more... )
• COORD_GRADE ( type: esriFieldTypeString, alias: Coordinate Grade, length: 25 , Coded Values: [GIS: GIS] , [Map Spot: Map Spot] , [Handheld GPS: Handheld GPS] , ...4 more... )
• GDB_REVIEWER ( type: esriFieldTypeString, alias: Data Reviewer, length: 3 , Coded Values: [TER: TER] , [RSO: RSO] , [CAR: CAR] , ...5 more... )
• POINT_X ( type: esriFieldTypeDouble, alias: POINT_X )
• POINT_Y ( type: esriFieldTypeDouble, alias: POINT_Y )
• Twp ( type: esriFieldTypeString, alias: Township, length: 10 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
